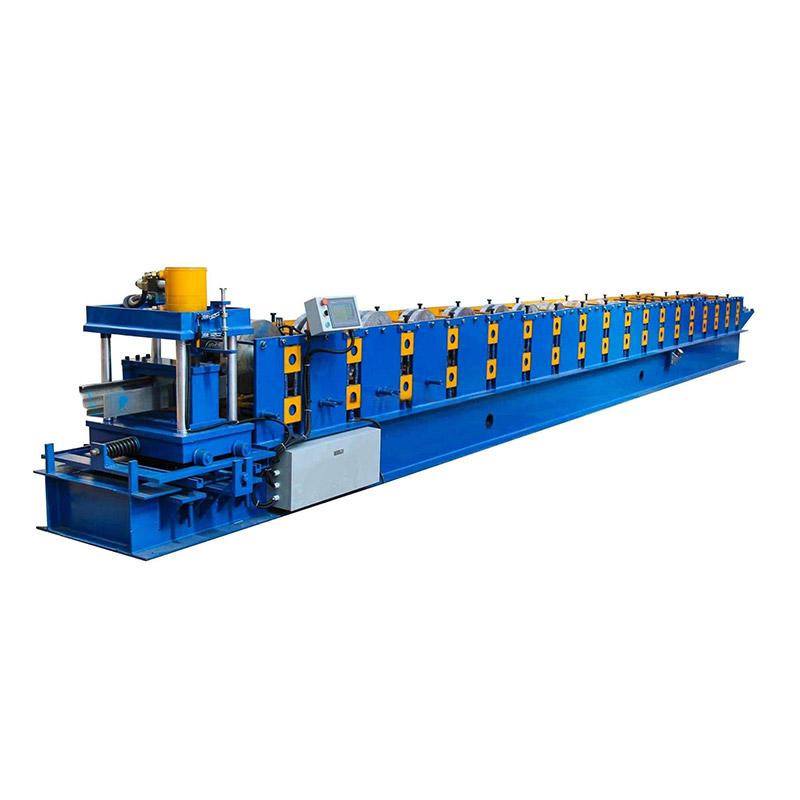

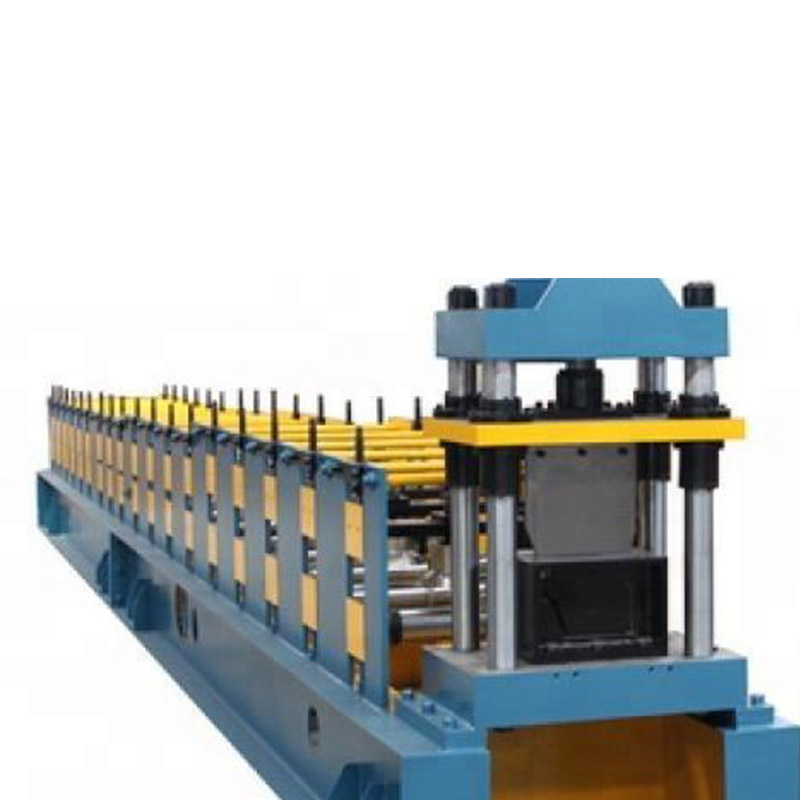

manufacturer YX22-780-1070 Water gutter forming machine downspout making machine

Basic information

Applicable Industries

Work Flow

Hydraulic Decoiler With Coil Car → Feeding Device → Leveling Device →  Punching Device Hydraulic Pre-cutter → Roll Forming System（Automatic Change）→ Post Cutter →Exit Rack → PLC Control System →Hydraulic station

Machine Components

1) Hydraulic Decoiler With Coil Car

1) Hydraulic Decoiler With Coil Car

2、Feed Guide Device

The guiding position can be adjusted for suitable material feeding.

3) Leveling Device

4) Hydraulic Pre-cutter

Cutter structure: Flat shear (arc cutter)

Material: Cr12Mov(SKD11), heat treatment

5) Punching Device

The size of Punching model: a set of double hole 14*30, a set of single hole 14*30/

 a set of double hole Φ14, a set of single hole Φ14

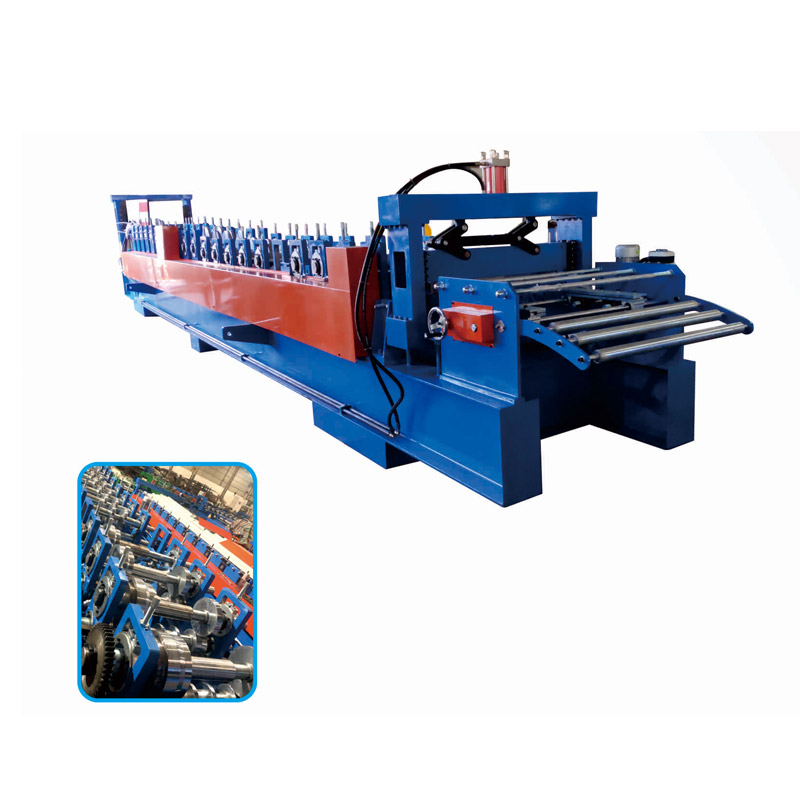

6) Roll Forming System（Automatic Change）

Body frame made from H450 type steel by welding
Rollers manufactured from Bearing steelCr12, precision machined, hard Chrome Coated;With thickness 0.5mm, surface with mirror treatment (for longer life and anti-rust);

Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ75/90mm, precision machined
Gear & chain drive about 20-step to form
Main Motor=18.5KW, Frequency speed control
Speed reducer motor: K series (Prepare by users)
Chain: ZIQIANG
All the screw bolts with grade 8.8 (cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Product speed: 14-18m/min (Including punching and cutting time)

After Sale Servicve

1、The warranty is 12 months after the client receives the machine. Within the 12 months, we will courier the

replacement parts except the consumable parts to the client free of charge.

2、We offer technical support for the entire life of our machines.

3、We can sent our technicians to install and train the workers in the clients' factories with extra cost.

Packing Method

Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded into container

and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

FAQ

A:- What is your payment term?
- 30% of the total payment should be paid as deposit ,the balanced should be paid after check the finished photos

and videos well ,we supply test report.

B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.

C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.

D:- What is the after- sale service?
- 12 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free.

After the quality guarantee period, only charge the production cost of the spare parts.Free technical supporting and

maintenance consulting in lifetime.Within quality guarantee period, except for failures caused by human error, repair parts

will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts.Free technical

supporting and maintenance consulting in lifetime.

E:-Can you accept OEM?
- We can accept OEM
